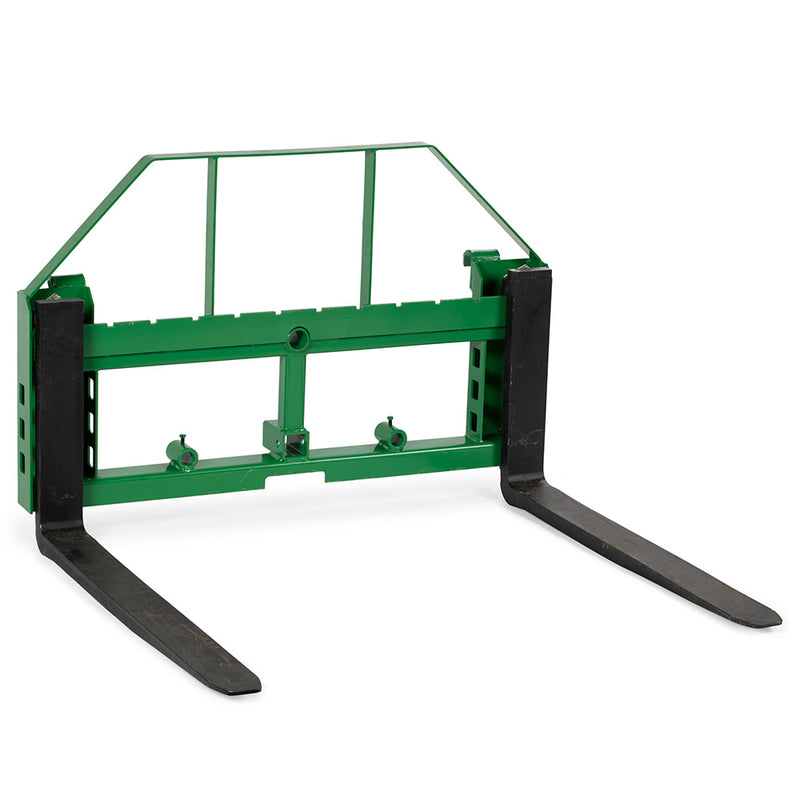

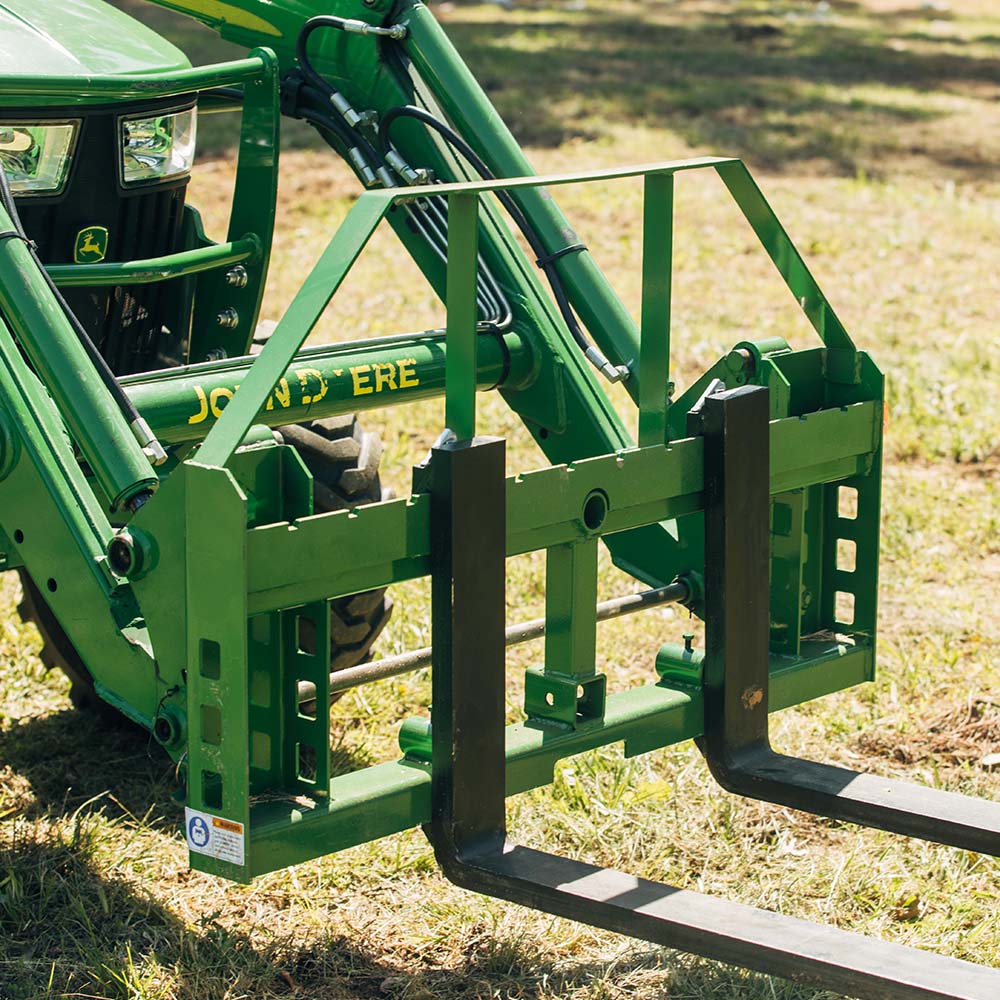

The Titan Attachments Standard Series Pallet Fork Frame Attachment triples as a fork frame, hay frame, and lightweight towing hitch. Attach it to any John Deere quick attach tractor for a secure and simple connection.

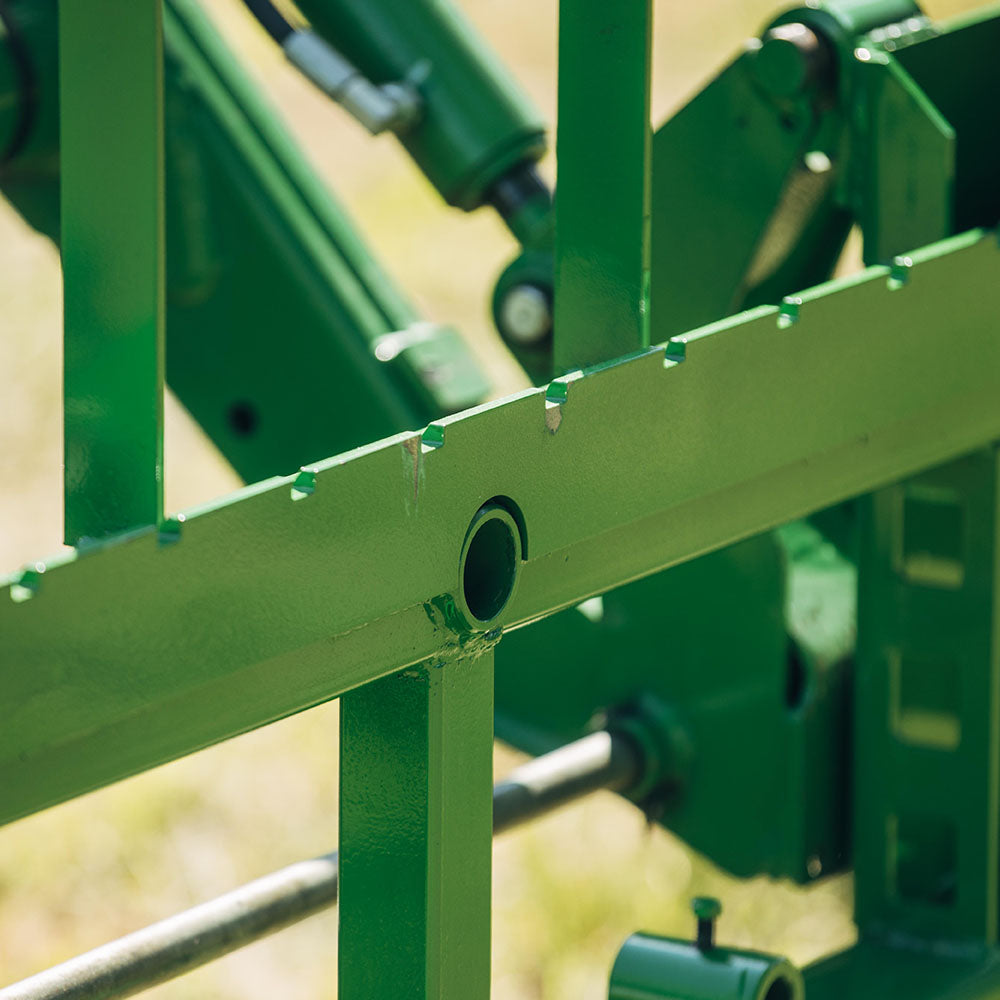

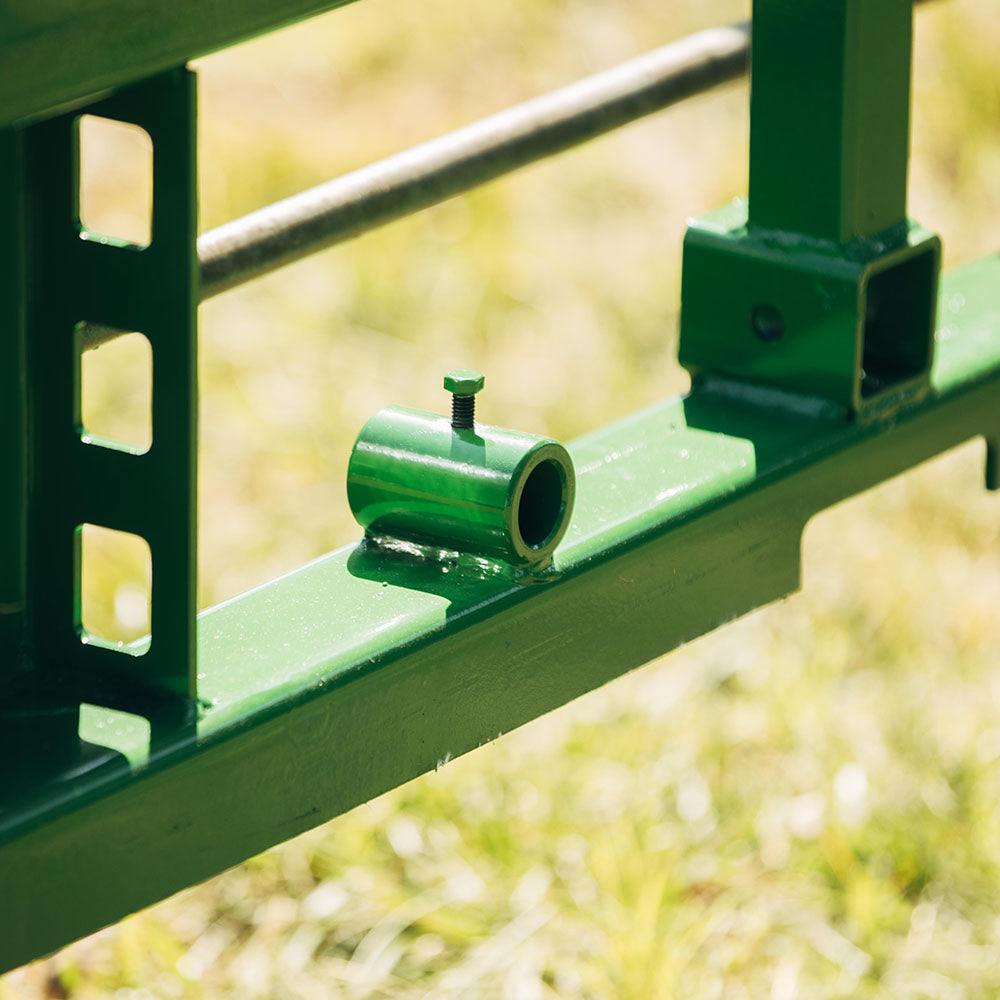

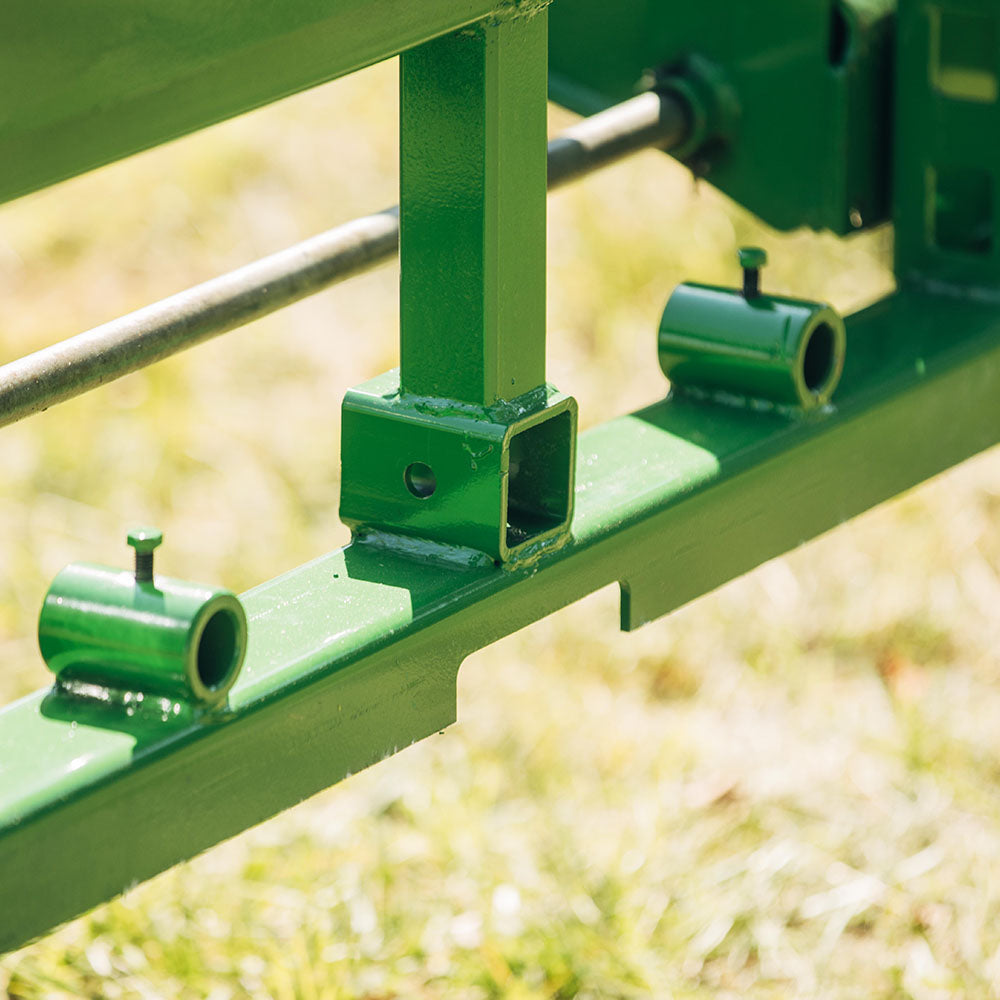

This pallet fork frame features a slotted carriage bar for mounting Class II pallet fork blades for moving pallets, feed, and other materials. It also has welded sleeves for installing Conus 2 hay spears (sold separately) and a 2" receiver hitch for tackling lightweight towing tasks.
Rated at 4,000 LB, this pallet fork frame has a higher weight capacity than the Economy Series frame and includes a see-through headache rack for durability and better visibility.

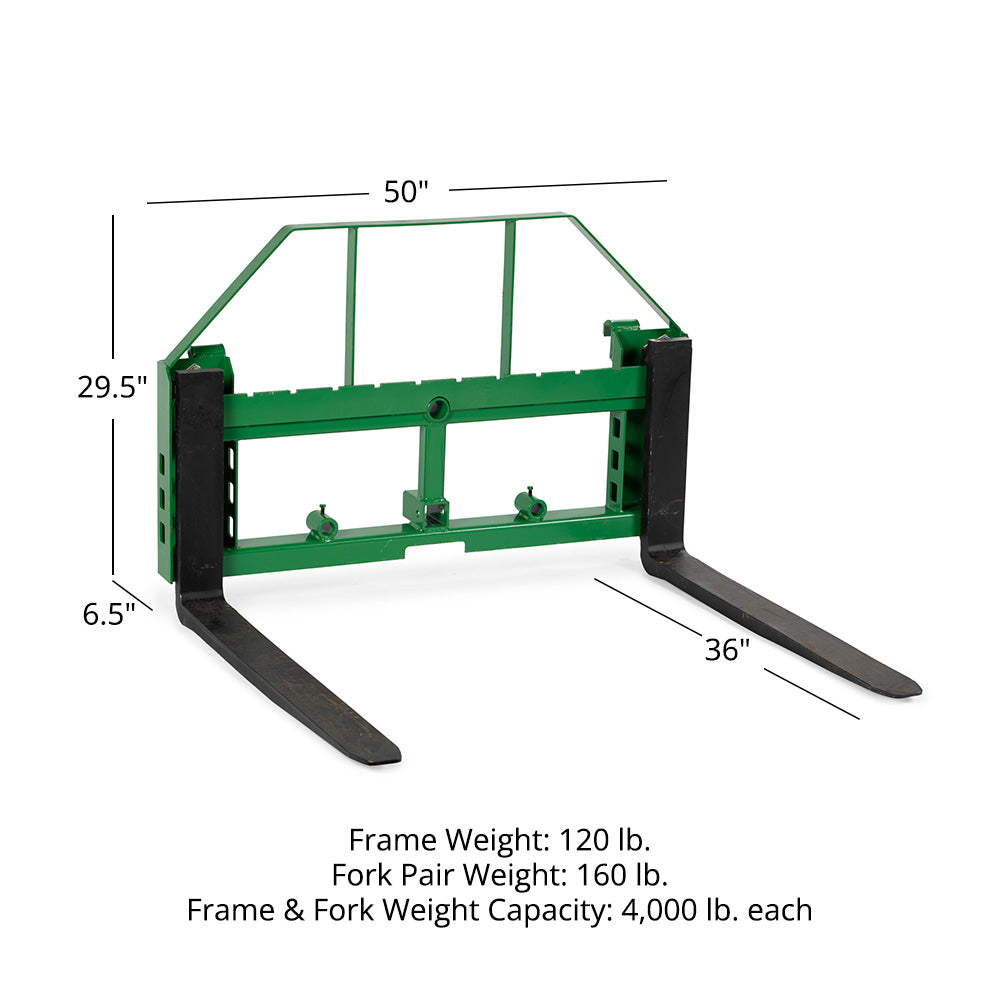

Specifications
Frame Height
29.5-in.
Frame Width
50-in.
Frame Depth
6.5-in.
Fork Length
60-in.
Fork Width
4-in.
Fork Thickness
1.25-in.
Pallet Fork Blades
Class 2
Upper to Lower Rail
16-in.
Main Spear Sleeve
Conus 2
Receiver Hitch Dimensions
2-in. x 2-in.
Material
Finish
Powder-Coated Green
Material
Steel
Weight
Frame Weight Capacity
4,000 lb.
Fork Weight Capacity
4,000 lb.
Fork Pair Weight
250 lb.
Frame Weight
120 lb.
Hook and pin mounting style
3-in-1 fork frame for moving pallets, hay bales, and trailers
