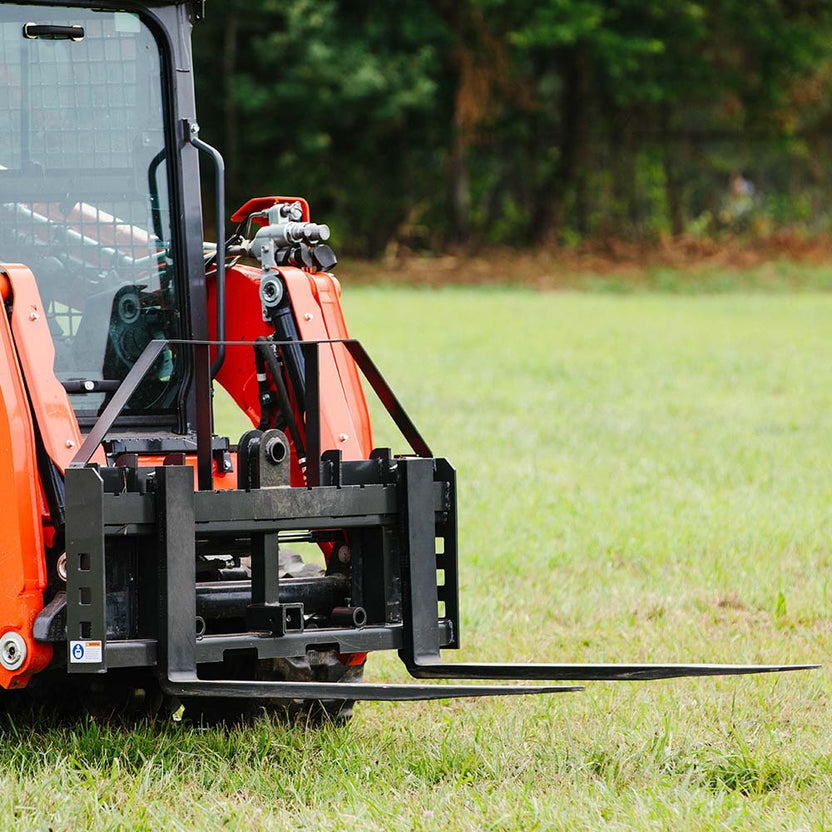

The Titan Attachments Standard Series Pallet Fork Frame is built to handle lifting jobs up to 4,000 LB. This medium-duty pallet fork frame is stronger than our Economy Series and works with any skid steer or tractor with a Universal SSQA system.

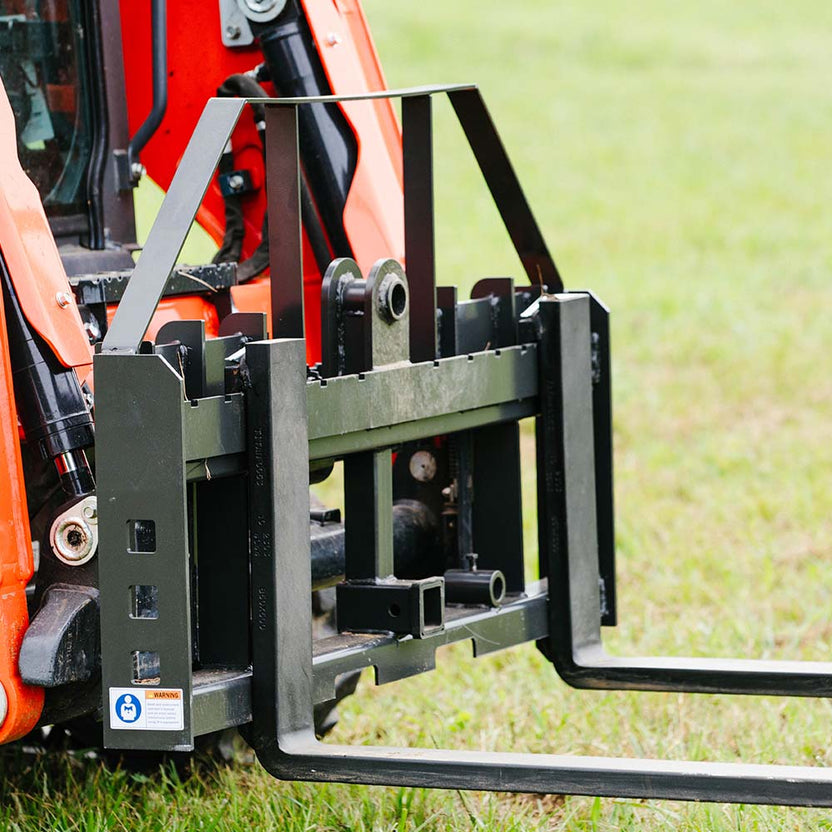

This three-in-one design triples as a pallet fork frame, hay frame, and towing machine. Featuring a see-through headache rack for visibility and a slotted carriage bar with fork sleeves, this frame is available with or without Class II pallet forks.
A C2 hay spear sleeve and stabilizer sleeves convert your attachment into a hay frame, perfect for moving large hay bales quickly (spears sold separately). This frame also has a 2" receiver hitch, turning your skid steer or tractor into a lightweight towing machine.
NOTE: Please include your phone number at checkout to schedule delivery.

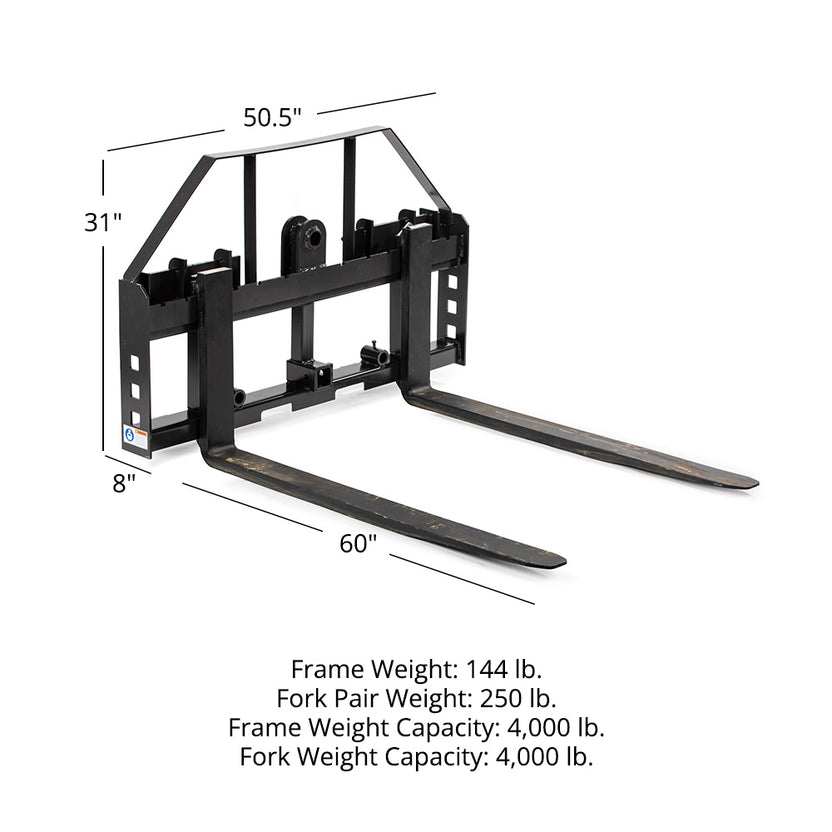

Specifications
Overall Height
31-in.
Overall Length
50.5-in.
Overall Depth
8-in.
Fork Length
Not included
Fork Width
4-in.
Fork Thickness
1.25-in.
Upper to Lower Rail
16-in.
Main Spear Sleeve
Conus 2
Material
Finish
Powder-Coated Charcoal
Material
Steel
Weight
Frame Weight Capacity
4,000 lb.
Fork Weight Capacity
4,000 lb.
Fork Pair Weight
250 lb.
Frame Weight
144 lb.
Universal skid steer quick tach mounting system
All-in-one frame for moving pallets, hay bales, and trailers
See-through headache rack
Integrated hay spear sleeves

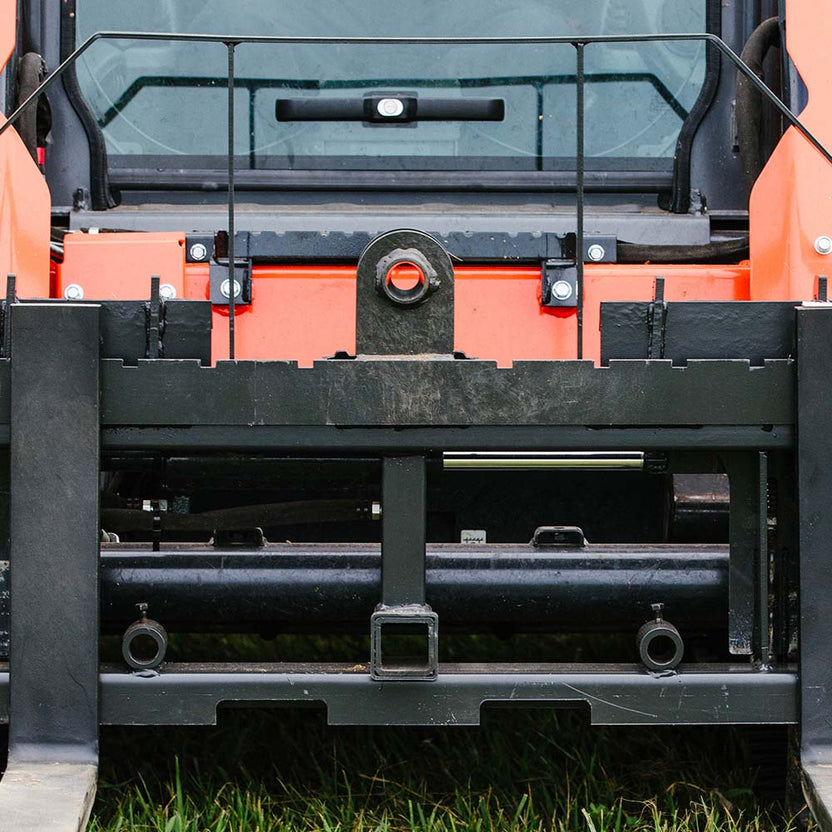

2" receiver hitch
Optional Class 2 pallet fork blades
Accepts main Conus 2 hay bale spear (sold separately)
This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.
Titan makes no warranty whatsoever with respect to the equipment, including any warranty of merchantability or warranty of fitness for a particular purpose, whether express or implied by law, course of dealing, course of performance, usage of trade or otherwise. Buyer assumes all liability in use of the equipment.
Customer Reviews
4.71
Based on 871 verified reviews
5★21
4★6
3★1
2★0
1★0
2 weeks ago
Slid onto my skid steer in seconds
Universal quick tach lined up perfect on my Bobcat S650. Latched both levers and went straight to moving pallets of block. No shimming, no fighting the plate.
Wade HRapid City, SDVerified buyer
3 weeks ago
4,000 lb rating is honest
Picked up a full pallet of bagged mortar, right around 3,000 lb, and the frame never flexed or groaned. Heel of the blades stayed dead straight.
Curtis MOttumwa, IAVerified buyer
1 month ago
See-through rack is the real upgrade
My old solid-plate frame had me guessing every time I stacked two high. Now I can watch the fork tips through the rack. Faster and safer.
Randall PBend, ORVerified buyer
1 month ago
Great frame, blades are heavy
Build quality is excellent for the money. Just know the fork pair is 250 lb, so have help or a hoist when you slide them on the carriage bar the first time.
Tony GKalamazoo, MIVerified buyer
1 month ago
Hay spear sleeves work great
Dropped a Conus 2 spear in the main sleeve and two stabilizers on the sides. Handles 5x6 wet round bales with zero twist in the frame.
Dean RTioga, NDVerified buyer
2 months ago
Half the dealer price
Quoted almost double for a comparable medium-duty frame at my local dealer. Welds are clean all the way around, powder coat is even, no slop in the sleeves.
